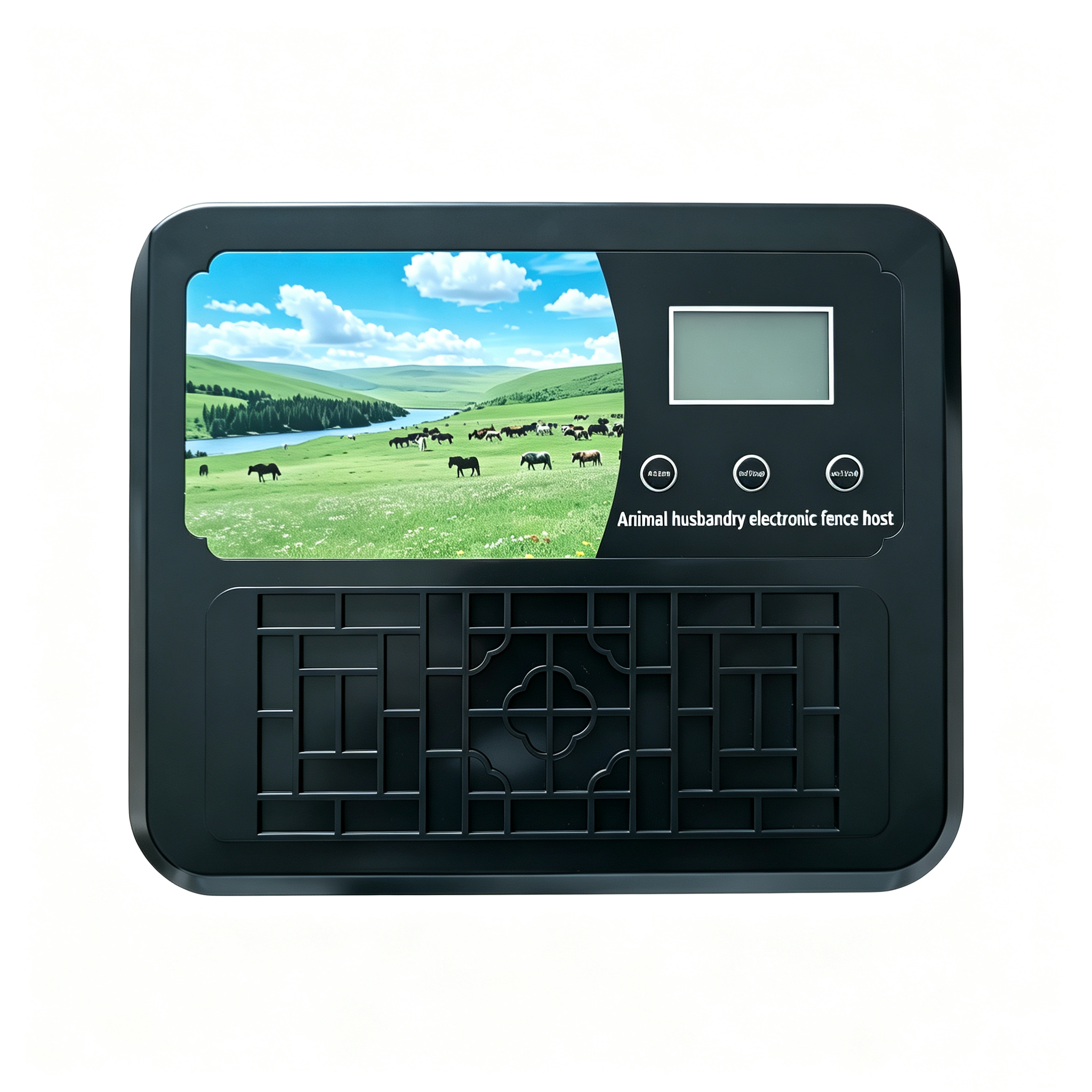

Electric Fence Energizer
Solar-powered electric fence energizer for livestock containment. Reliable, portable, and maintenance-free.
Fence Energizer
Electric Fence Energizer
Our solar electric fence system provides a safe and effective way to contain livestock without the need for grid power. Built with high-quality components, it delivers consistent voltage to keep your animals secure day and night.
Key Features
- Output voltage up to 12KV with 8/10/12KV automatic switching
- 100μs high-voltage pulse, effective yet safe for livestock
- Adjustable output voltage based on fence length (10-40km support)
- Built-in wire-break alarm with high/medium/low sensitivity
- Triple power supply: AC adapter, lead-acid battery, and solar panel
- Waterproof and dustproof housing for outdoor reliability
Technical Specifications
| Parameter | Energizer I | Energizer II | Energizer III | Energizer IV |
|---|---|---|---|---|
| Power Supply | 12V, 110-240V 50/60Hz | 12V, 110-240V 50/60Hz | 12V, 110-240V 50/60Hz | 12V, 110-240V 50/60Hz |
| Rated Power | 3W | 5W | 8W | 8W |
| Input Current | 95mA | 95mA | 95mA | 180mA |
| Output Voltage | ≤12.0kV | ≤12.0kV | ≤12.0kV | ≤12.0kV |
| Energy Storage | 3J | 5J | 7J | 9J |
| Output Energy | 3J | 5J | 7J | 9J |
| Maximum Distance | 10km | 20km | 30km | 40km |
| Pulse Width | 100μs | 100μs | 100μs | 100μs |
| Voltage Switching | 8kV/10kV/12kV auto | 8kV/10kV/12kV auto | 8kV/10kV/12kV auto | 8kV/10kV/12kV auto |
| AC/DC Adaptor Range | 110-240VAC | 110-240VAC | 110-240VAC | 110-240VAC |
| Solar Power Compatible | Yes | Yes | Yes | Yes |
| Waterproof & Dustproof | Yes | Yes | Yes | Yes |
Applications
Cattle ranching
Horse farms
Sheep and goat operations
Wildlife enclosures
